Main features

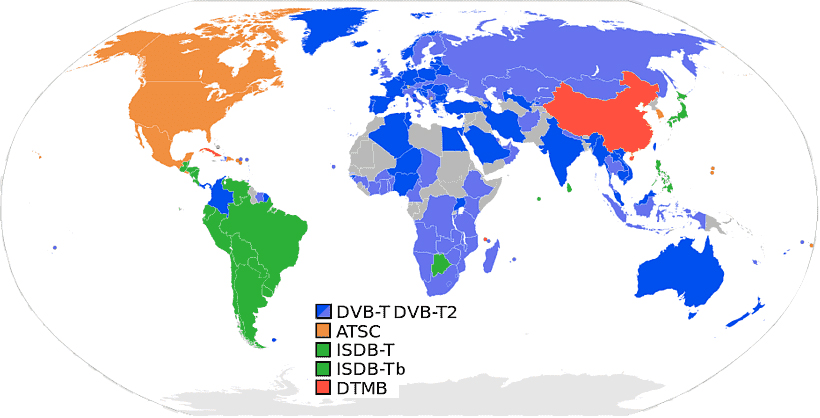

1. Compatible with the latest 5 standards of digital terrestrial broadcasting in the world.
- DVB-T/T2/T2 HEVC
- European countries, Russia, Australia,
Taiwan, Singapore, Thailand, UAE, etc. - ATSC
- USA, Canada, Korea
- ISDB-T
- Japan
- ISDB-Tb
- South America, Philippines, etc.
- DTMB
- China, Hong Kong, etc.
Precautions for viewing terrestrial broadcasting
- ・To receive terrestrial digital broadcasts, it is necessary to have the corresponding TV antenna.
- ・Even if the antenna and this product are set up properly, and correctly connected, reception of terrestrial digital broadcasts will be impossible in countries without terrestrial digital broadcasting. In addition, various problems may occur such as blocking of signals by neighboring buildings, inability to receive weak signals, only being able to receive specific broadcasting channels, audio cutting out, and stopping of video, and appearance of block noise.
- ・Topographic conditions as well as weather conditions have great influence on TV terrestrial reception range.
- ・Pay broadcasts (scrambled broadcast) cannot be viewed.
- ・Not supported AVS China
2. Two in One.
You can enjoy both digital terrestrial broadcasts and internet connection.
*Internet (communication line and Internet service provider contract) is
required.
*Paid contents cannot be viewed.
*Some functions such as Japanese input are not possible, because it is
equipped with a web browser with simple functions.

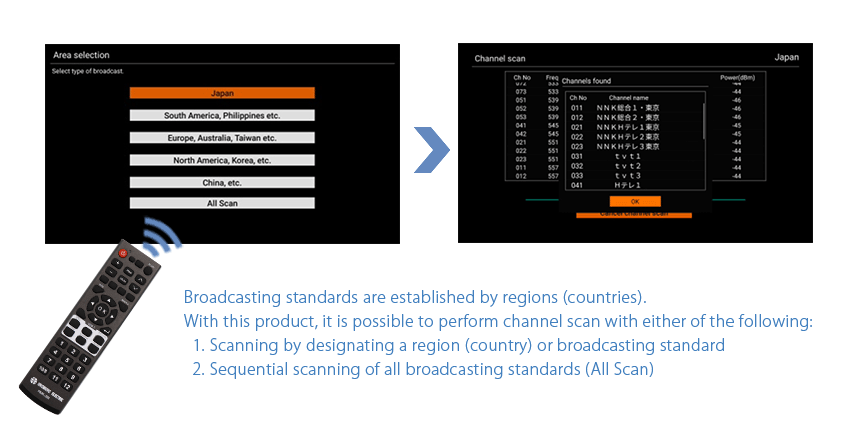

3. Intuitive scan function
Simply select the region (broadcasting standard) using the remote controller.

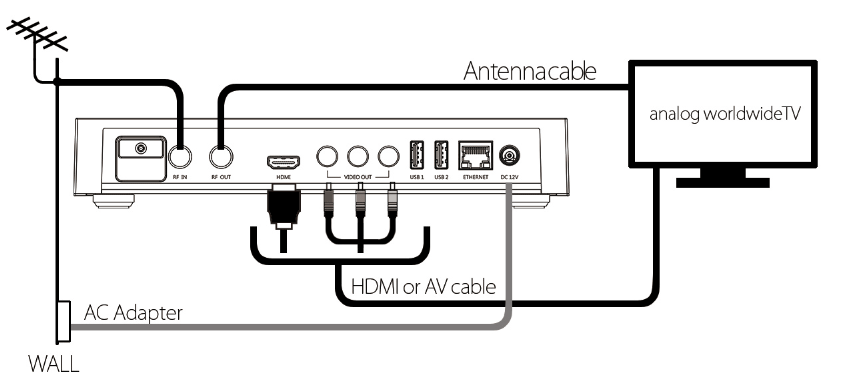

4. Easy connection with
analog world wide TV
For analog viewing in countries that continue analog terrestrial TV broadcasting.
An antenna through-out output terminal is provided on the main unit for analog world wide TV connection.
・digital TV in regions (countries) where terrestrial digital broadcasting is available using SMART DIGITAL TUNER.
・analog TV in regions (countries) where terrestrial analog broadcasting is available using your analog worldwide TV.
Specifications
| Product name | SMART DIGITAL TUNER Worldwide |
| Model | KST-2000-W |
| TV Formats supported | Digital terrestrial TV broadcasting standards ・ATSC1.0, DVB-T, DVB-T2/T2 HEVC, ISDB-T, ISDB-TB, DTMB (Not supported AVS China) |

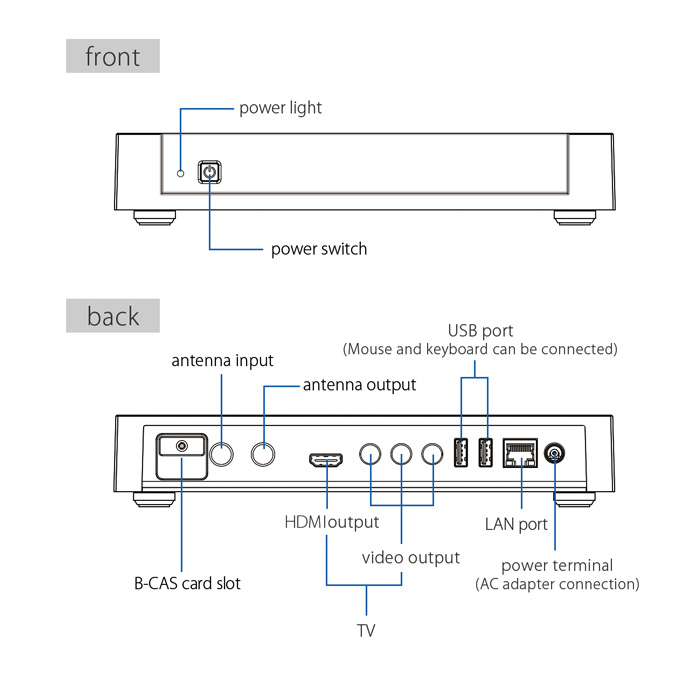

| Interface | HDMI output RCA video output USB x2 LAN Antenna input/output (RF pass-through output) DC Jack |
| AC adapter | AC100 - 240V 50/60Hz |
| Power consumption (Approx.) | 8W |
| Operating temperature | 0 - 40℃ |
| Operating humidity | 20-80% No condensation |
| Dimensions | 242mm(W) x 44 mm(H) x 125mm(D) |
| Mass (Approx.) | 450g |

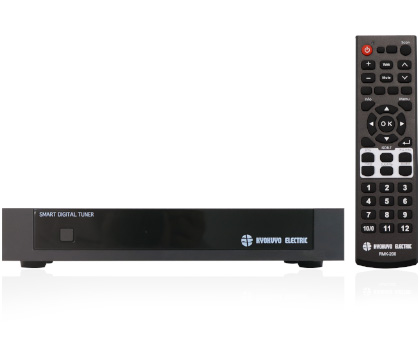

Remote controller
| Batteries | Size AAA Batteries (1.5V) x 2 |
| Size | 49mm(W) x 27mm(H) x 185mm(D) |
| Mass (Approx.) | 82g (excl. batteries) |
